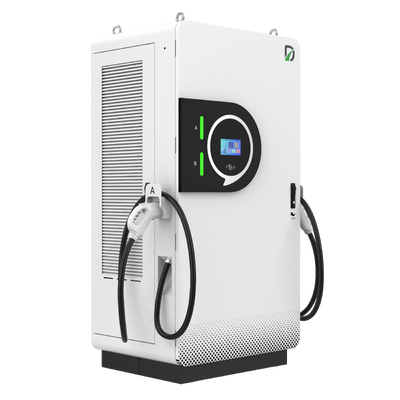

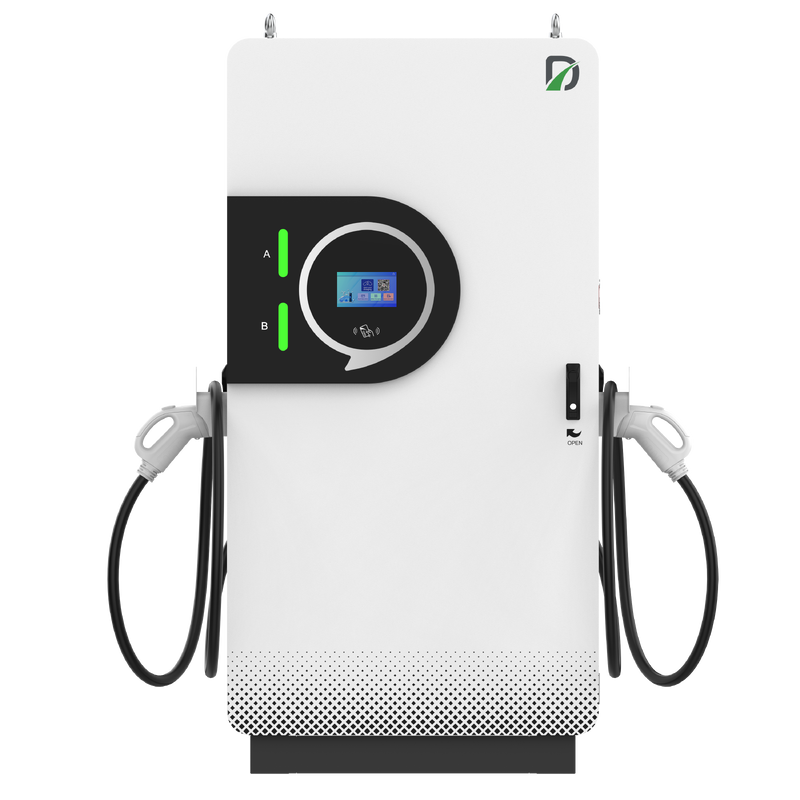

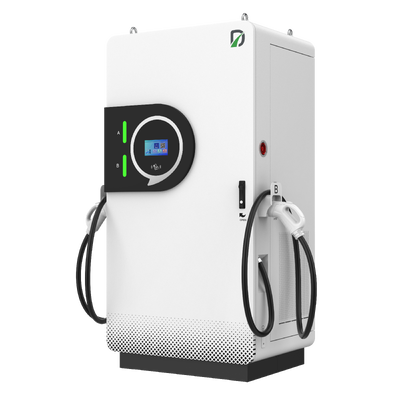

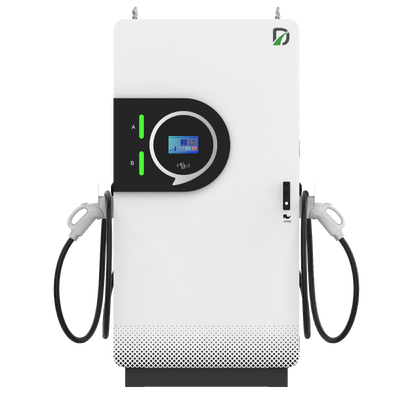

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW

ブランド名: DOOR
モデル番号: Uシリーズ
MOQ: 1PC
価格: 交渉可能
支払条件: L/C、T/T、ウェスタンユニオン
詳細情報
起源の場所:
中国
証明:
CE/CB
電源:
3P+N+PE
定格電圧:
AC 400V
頻度:
50/60HZ
出力電圧:
DC200~1000V
最大電流:
250a
定格電力:
400kw
充満コネクター:
CCS2/CCS1/GBT/CHAdemo/テスラ
ケーブル長:
5m
囲い:
亜鉛メッキ鋼
LEDインジケーター:
GREEN/BLUE/RED
LCDディスプレイ:
7.0インチ
スタートモード:
プラグアンドチャージ/RFIDカード/APP
非常停止:
はい
posターミナル:
オプション
WI-FI:
はい
Ethernet/3G/4G:
はい
オクップ:
OCPP 1.6 (OCPP 2.0 はオプション)
効率:
最高の95%
力率:
≥ 0.99
THD:
≤ 5%
エネルギー メートル:
MID認証済み
RCD:
タイプA
侵入保護:
IP55
衝撃保護:
IK08
証明:
CE | CB((In Progress))
証明の標準:
EN/IEC 61851-1: 2017、EN/IEC 61851-23: 2014
保証:
2年
インストール:
床スタンド
冷却方法:
ファン冷却
ノイズ:
≤ 60dB
作業温度:
-30°C~+50°C
仕事 の 湿度:
5%~95%
ノークの標高:
<2000m
パッケージ寸法:
1200*847*1948 mm (長さ*幅*高さ)
総重量:
700kg
外部パッケージ:
ウッドケース
製品説明

Meet The U Series Dc chargers


The U Series Dc chargers are specifically designed for public and retail applications, bringing industrial-grade resilience to high-traffic commercial spaces.

————————————————————————————————————————————————————————————————————————————————

Fully Sealed independent Air Duct


Double-layer louver design ensures complete protection for both air inlets and outlets.
Zero external dust intrusion during standby mode.
lsolates 99% of airborne particles, ensuring industrial-grade reliability.


Active Dust Removal System


Industry Exclusive (Patented): Competitors cannot replicate this performance.
Smart Automation: Automatically triggers vibration-based dust removal after every 10 charging sessions (frequency is fully customizable).
Foolproof Safety: During the cleaning cycle, the screen locks with the prompt "Dust Removal in Progress, Do Not Charge" and displays an E-stop status to prevent manual errors.Normal operation auto-resumes upon completion.


Ultra-Fast Simultaneous Charging


Wide power coverage scaling up to 400kw.
Perfectly adapted for heavy-duty electric trucks, construction machinery, and high-turnover retail charging hubs requiring massive power delivery.


Ultra-Quiet Design


Full-load operating noise s65dB across all power ranges.
Ideal for stations near residential zones, commercial centers, or night-time off-peak charging, eliminating the risk of environmental noise complaints.

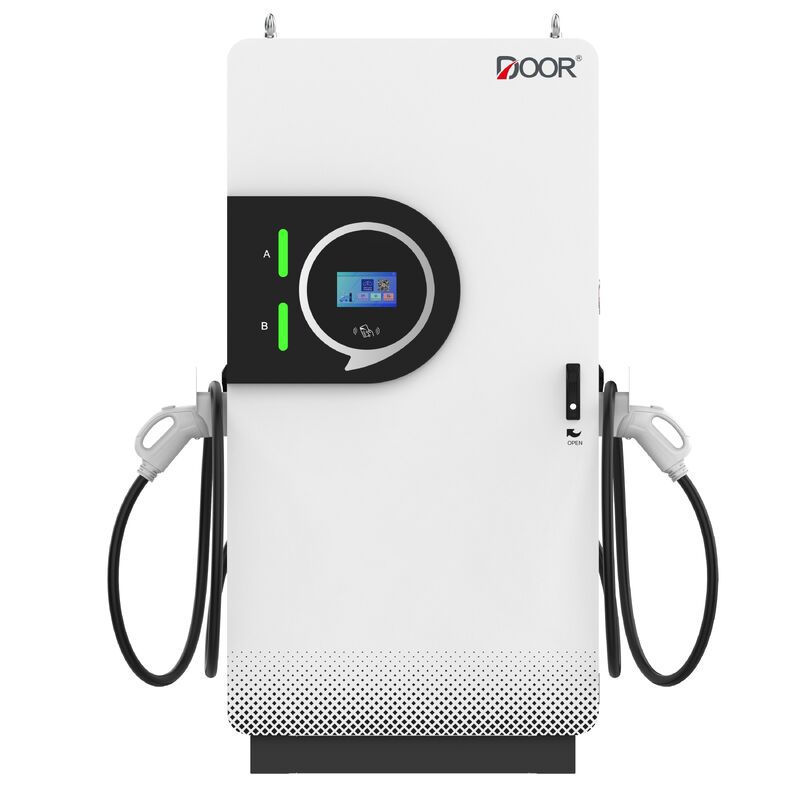

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 0

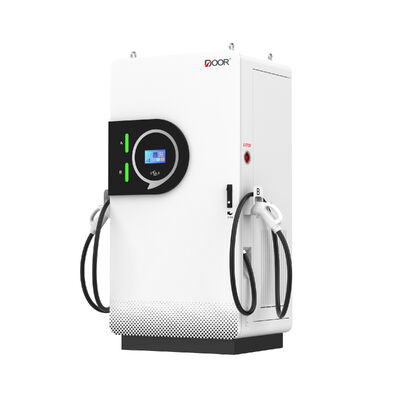

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 1

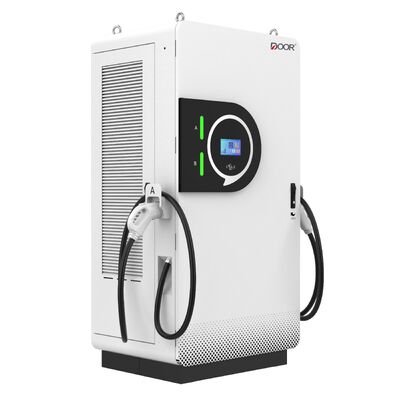

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 2
