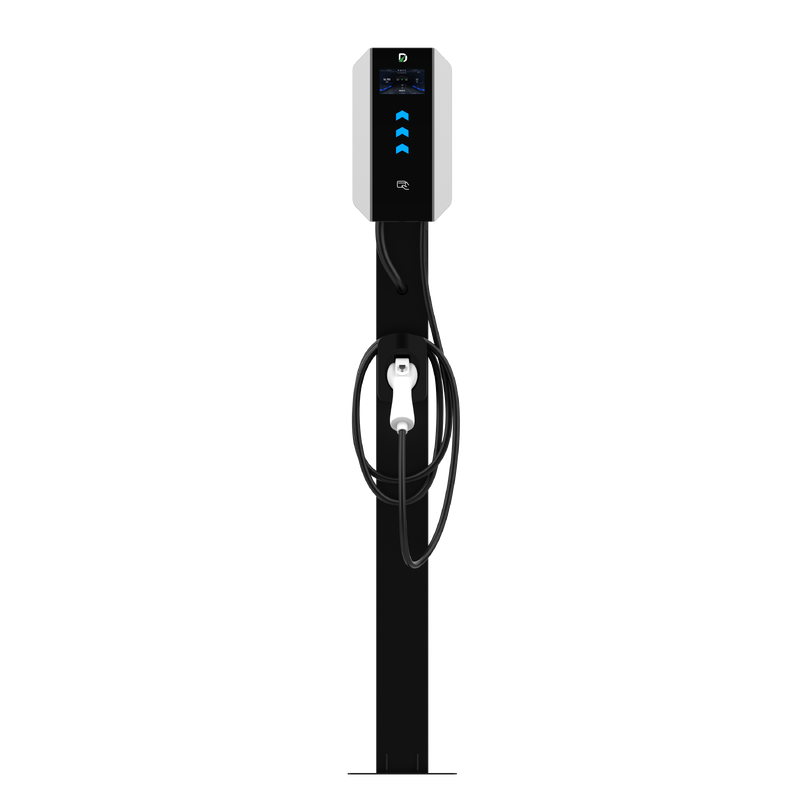

W Series AC EV charger 7kW/11kW/22kW

W Series AC EV charger 7kW/11kW/22kW

ブランド名: DOOR
モデル番号: Wシリーズ
MOQ: 1PC
価格: 交渉可能
支払条件: L/C、T/T、ウェスタンユニオン
詳細情報
起源の場所:
中国
証明:
CE/CB
電源:
1P+N+PE
定格電圧:
AC230V
定格電流:
32a
頻度:
50/60HZ
出力電圧:
AC230V
最大電流:
32a
定格電力:
7KW
充満コネクター:
GBT/タイプ2ソケット
囲い:
ABS+PC
フロントパネル:
ABS
LED インジケーター RFID リーダー:
緑/青/赤 Mifare ISO/IEC 14443 A
スタートモード:
プラグアンドチャージ/RFIDカード/APP
非常停止:
はい
WI-FI:
オプション
Ethernet/3G/4G:
オプション
オクップ:
OCPP 1.6 (OCPP 2.0 はオプション)
エネルギー メートル:
いいえ
RCD:
30mAタイプA + 6mA DC
侵入保護:
IP65
衝撃保護:
IK08
証明:
CE | CB((In Progress))
証明の標準:
EN/IEC 61851-1: 2017、EN/IEC 61851-21-2: 2018
保証:
1年
インストール:
壁式/ポール式
作業温度:
-30°C~+50°C
仕事 の 湿度:
5%~95%
仕事の高度:
<2000m
パッケージ寸法:
440*400*170mm (長さ*幅*高さ)
総重量:
5.1kg
外部パッケージ:
カートン
製品説明

W Series Ac chargers


The W Series Ac chargers are specifically designed for commercial applications, offeringreliable performance, smart connectivity, and flexible installation options.

————————————————————————————————————————————————————————————————————————————————————

1.Lower Deployment cost


85%lower CAPEX compared to DC fast charging, with simpler installation requirements and reduced electrical infrastructure costs.


2.Ideal For Long Parking


Perfect for 4-10 hour parking scenarios like employee parking, residential parking, and business park applications.


3.Scalable Deployment


Easily scale from 2 to 100+ charging points with modular design and phased deployment capabilities.


4.Smart Management


Advanced features including APP control, RFlD access,OCPP platform integration, and dynamic load balancing.

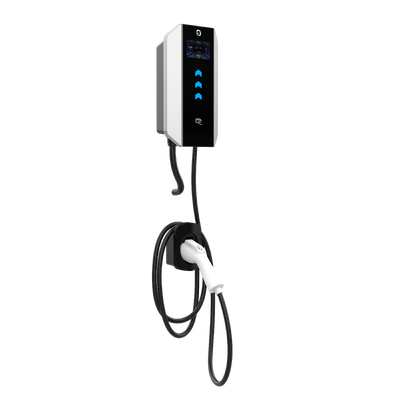

W Series AC EV charger 7kW/11kW/22kW 0

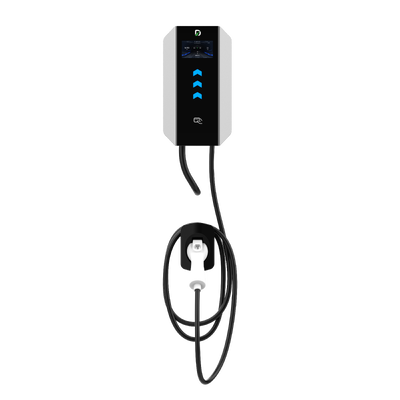

W Series AC EV charger 7kW/11kW/22kW 1

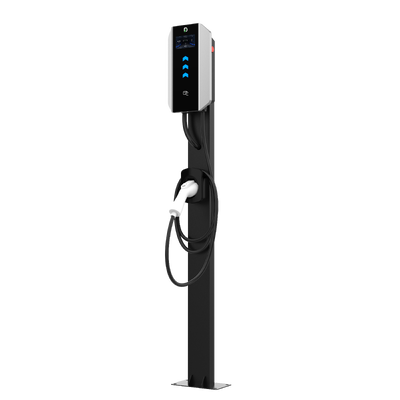

W Series AC EV charger 7kW/11kW/22kW 2

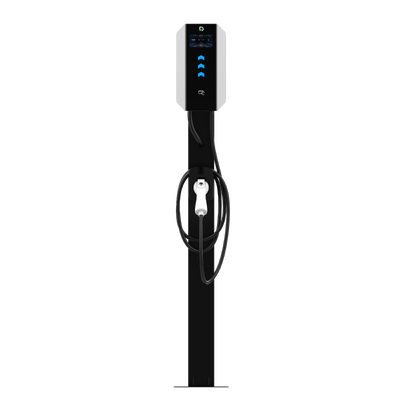

W Series AC EV charger 7kW/11kW/22kW 3
